Special Features:

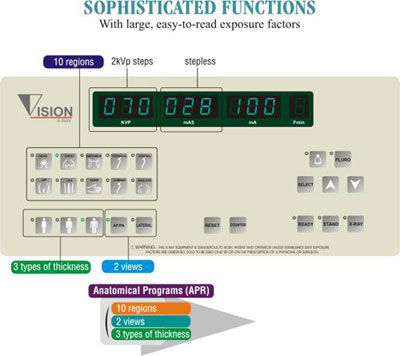

- Micro Processor based digital control panel.
- Electronic feather touch membrane keyboard. ( Guaranteed for one million operations. )
- Convenient auto programmed helps Doctor for better image quality.
- Manual mode selection.
- Independent kVp, mAs display.
- Various voltages and timer setting options.
- X-Ray ON audible tone.
- Mains on / off with overload circuit breaker.
- Automatic tube overload protection for longer tube life.
- Also available with classic control. ( Conventional control with digital display )
State of the art imaging within your reach
- Counter balanced mechanism – easier positioning, better radiography results.
- 3-wheel design – for maximum mobility maneuverability.
- Horizontal and vertical travels of arms for better positioning for bedside X-Rays and trauma cases.
Utility
The machine is ideal for X-Rays of chest, skull, extremities and special investigations including Barium IBP & routine Orthopedic examinations. Range of optional accessories are also available : Horizontal & manual multi position examination tables.
Technical Specification:
| • Generator Rating | |||||||||
| Radiography | 100 mA at 100 kVp | ||||||||
| Fluoroscopy | 5 mA at 100 kVp | ||||||||
| • Tube Current | |||||||||
| Radiography | 25 mA, 50 mA, 100 mA | ||||||||
| • Tube Voltage | |||||||||
| Radiography | 45 kVp – 100 kVp | ||||||||
| • Timer | |||||||||
| Radiography | 0.02 sec – 10 second Solid state | ||||||||
| • Power | 8KW | ||||||||
| • Power Supply | |||||||||
| Single phase | 230 V, 50 / 60 Hz, 10KVA 0.6 Ohms line resistance *On a weak power supply Line, it is recommended to have 3-phase 415 V, 0.6 Ohms resistance, 10KVA line | ||||||||
| • Self-contained Tube Head Specification | |||||||||
| Rectification | Full-wave, rectified | ||||||||
| • X-Ray tube | Stationary Anode, 40 KHU, 2.8mm x 2.8mmFocal Spot | ||||||||
| • Overall Dimensions |
|
||||||||
| • Movements | Up / Down Fully Counter-balanced | ||||||||
|
|||||||||
